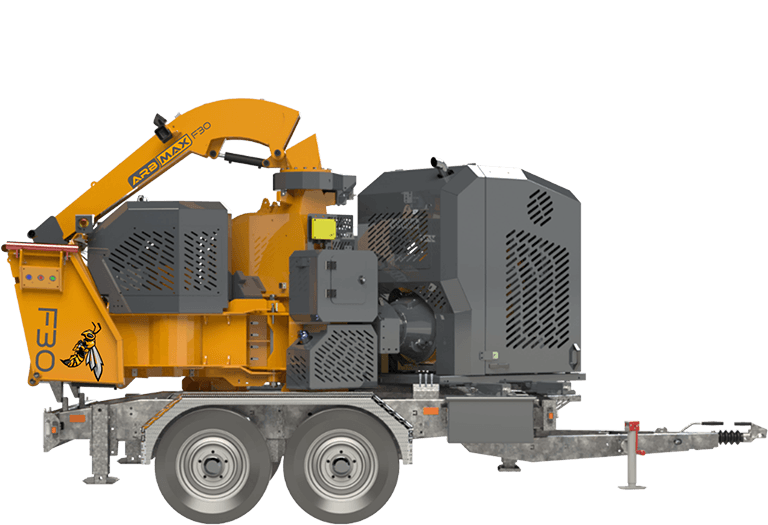

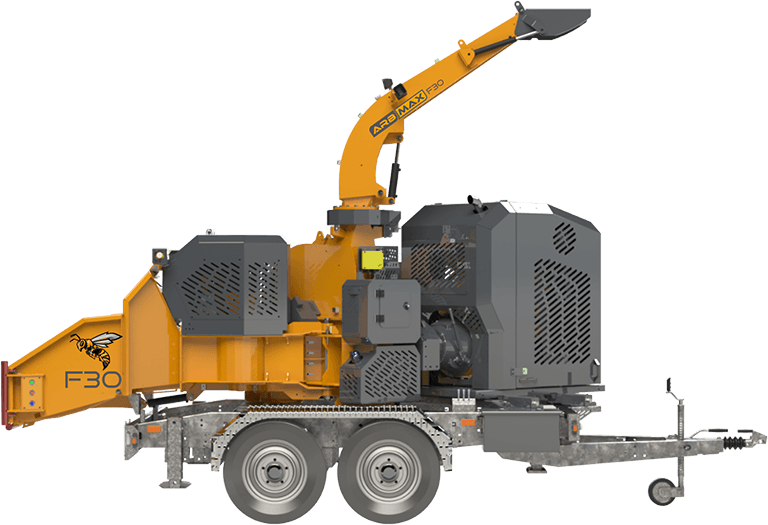

F30 Wood Chipper
ARBMAX F30 12″ Disc Wood Chipper, designed for small to medium-sized forestry and tree surgery operations. Built to excel in the most demanding wood chipping environments, this robust machine features a 50-degree angled cutting disc for optimal efficiency and chip quality. Hardox chamber construction and oversized premium components offer unparalleled durability, and high torque aggressive feed-wheels process the most challenging materials. Pivoting chamber door provides unrivalled service access, simplifying maintenance & reducing downtime. Experience unmatched performance, durability, & serviceability with the ARBMAX F30 — where innovation and performance meets reliability.
- Pivot opening feed chamber enables unrivalled access
- High torque vertical feed wheels
- Hydraulically controlled roller pressure
- Open on demand for large diameter material
- Premium hydraulic motors
- Hydraulic hopper
- Loaded by hand, crane or machine
- Integrated stop bars for safe hand-feeding
- Independent e-stop buttons
- Dual IP69K multifunction controls
Wheeled
- Heavy duty leaf sprung suspension
- 2 x 1900kg axles
- Fully galvanised chassis
Tracked
- 2m x 300mm rubber
- Heavy duty 5 tonne track-set
- High definition 4.3” HMI screen
- Full functionality for machine controls & intuitive pictoral icons
- Removable wear liners
- Hydraulic control & adjustment as standard
- Hydraulic deflector flap
- Fully machined chipping disc
- Disc angled at 50˚for increased chipping performance
- Oversized premium bearings
- Hardox® chamber construction
- Adjustable knives & anvils
- Stage 5 Cat® 100kW (134hp) or Deutz® 55kW (75hp) engine options
- Twin plate clutch for engaging chipping disc
- Fuel tank 100 Litres
- Hydraulic tank 80 Litres
- Radio multifunction remote
- 4.2m/6.4m mounted crane with control options
- Reversible cooling fan
- Lighting Package
- Custom RAL paint
Technical Specification
Knives
2
Capacity
Approx. 50m3/hr
Anvils
3
Power Unit
Cat® C3.6 100kW (134hp); Deutz® 2.9 L4 55kW (75hp)
Feed Opening
330mm x 310mm
Weight, Wheeled
3100kg*
Hopper Opening
1320mm x 800mm
Weight, Tracked
3800kg*
*Weight varies depending on options.
Technical Specification
Knives
2
Capacity
Approx. 50m3/hr
Anvils
3
Power Unit
Cat® C3.6 100kW (134hp); Deutz® 2.9 L4 55kW (75hp)
Feed Opening
330mm x 310mm
Weight, Wheeled
3100kg*
Hopper Opening
1320mm x 800mm
Weight, Tracked
3800kg*
*Weight varies depending on options.
